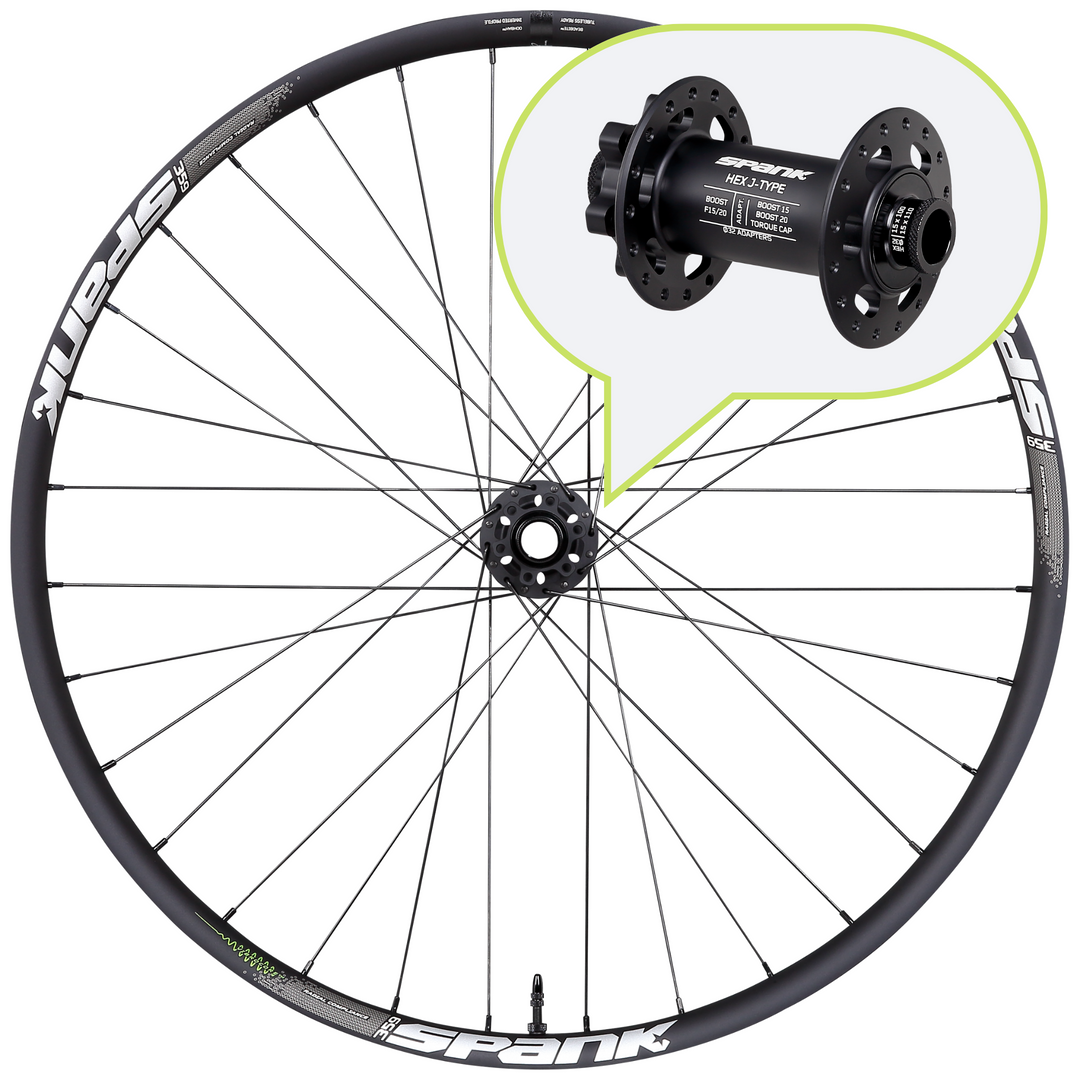

SPANK 359 Vibrocore™ FRONT Wheel

SPANK 359 Vibrocore™ FRONT Wheel

Regular price Save $-299.00
/

Only 1 items in stock!

The low profile, radially compliant alloy rim injected with SPANK's award-winning Vibrocore to add torsional strength and lateral stiffness, offers a smooth and highly responsive ride feel.  Hand-built to A-Class specifications, the 359 Vibrocore wheels with SPANK Hex Drive hub is the premium offer from the SPANK wheelhouse and is trusted by pros on the UCI DH World Cup circuit, as well as big mountain free-riders.  This wheel is spec'd and built for the heavy hitters.

  • Moderately low 19mm profile height and wide width balances the benefits of radial compliance with high lateral stiffness and predictable handling
  • Radial Compliance improves traction over bumps and chatter while reducing negative feedback to the rider. Performance and comfort are improved.
  • Vibrocore™ inner well, reduces the transmission of harmful vibration frequencies, meaning less vibration for the suspension and rider, also increasing the fatigue life of the rim
  • 5mm inner width is extremely versatile, fitting tires from 2.0” to 2.6”, and even allowing + size tire use without negative squaring off of tire profiles
  • Bead Bite tubeless hooks enhance tubeless performance and tire security, even at lower pressures



REAR WHEELS TO PAIR WITH:

SPANK 359 SPANK 359 VIBROCORE



CLASSIFICATION & INTENDED USE:  ASTM 5

ALL MOUNTAIN
TRAIL
ENDURO
FREERIDE
DOWNHILL GRAVEL XC E-BIKE
- - *

 * Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as a separate purchase in HG, XD, and Microspline.  (See Hex Drive Service Parts)



HUMAN FACTOR

SPANK's recommendations for what body type and ride style this product is suited to.

BODY WEIGHT & RIDE STYLE: Heavy Rider Medium Rider Light Rider
Heavy Impact

Medium Impact

Light impact



RIM SPECIFICATIONS

HOLE COUNT:
32
INNER WIDTH (mm):
30.5
OUTER WIDTH (mm):
35
PROFILE HEIGHT:
19
TYRE FIT
2.0" to 2.6"



BUILD SPECIFICATIONS

BUILD:
A-Class Handbuilt
HUB: SPANK HEX J-TYPE
SPOKES:
J-Hook, triple-butted 2.2/1.8/2.0
NIPPLES:
Brass external
LACING:
3 cross lacing
VALVE: F/V Presta
TUBELESS: Tubeless taped & valved



VARIANT SPECS


HUB HUB SPACING BOOST HOLE COUNT ADAPTER INCL. WEIGHT ERD ETRTO SPOKE LENGTH SPOKE LENGTH
27.5" HEX J TYPE BOOST 15x110 BOOST 32H BOOST 20X110
1004g
560++ 584x30.5 R-272

L-270


HEX J TYPE
20x110
-
32H
15x100

992g

560++
584x30.5

R-272

L-270












29"
HEX J TYPE
BOOST 15x110
BOOST
32H
BOOST 20X110

1052g

598++

622x30.5

R-292

L-290


HEX J TYPE
20x110
-
32H
15x100

1039g

598++

622x30.5

R-292

L-290



ADAPTERS COMPATIBLE WITH SPANK HEX J-TYPE FRONT HUBS

Boost F15/20

HEX Ø32 Boost Front Hub Torque Caps Adapter

F15/20

HEX Ø32 Front Hub QRx100 Adapter

HEX Ø32 Front Hub 12x100 Adapter

All Hex J-Type Front Hubs

HEX Ø32 Front Hub Boost 15x110 Conversion Kit



HEX Ø32 Front Hub Boost 20x110 Conversion Kit



SERVICE KITS COMPATIBLE WITH SPANK HEX J-TYPE FRONT HUBS

HEX Ø32 Front Hub Replacement Bearing Kit
