FLARE 24 OC Vibrocore Rear Wheel

FLARE 24 OC Vibrocore Rear Wheel

Regular price Save $-399.00
/

Only 2 items in stock!
  • Disc specific, tubeless-ready, clincher rim, with Vibrocore™, optimized for Gravel, Adventure, and MTB Cross Country use

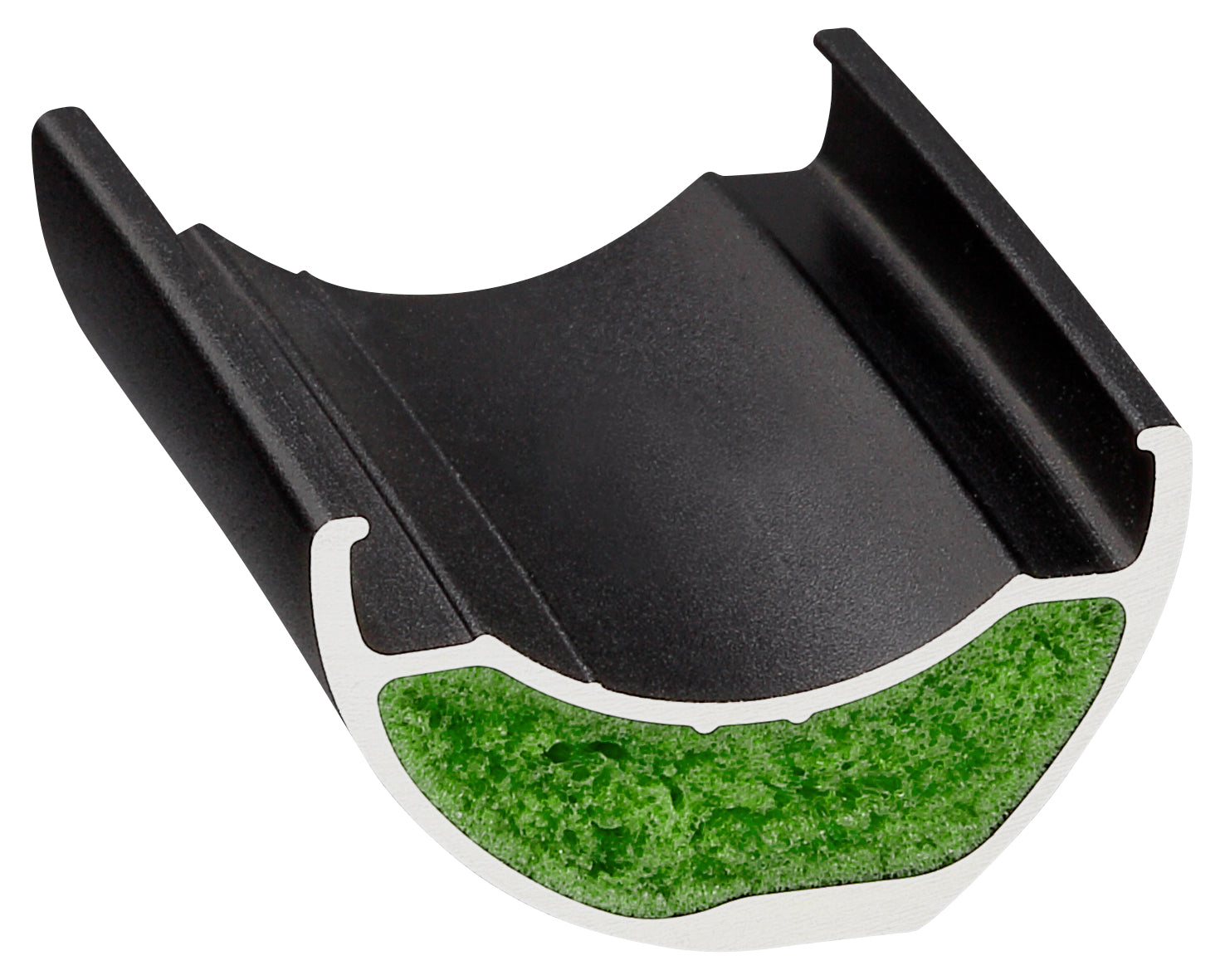

  • Vibrocore™ inner well reduces the transmission of harmful vibration frequencies, improving rider comfort and increasing the fatigue life of the rim
  • Low profile 16.5mm depth and wide 27.5mm outer width enhance Radial Compliance, improving traction while reducing negative feedback to the rider
  • Asymmetric, 24mm inner width profile improves spoke tension balance between the drive side and non-drive side spokes and optimizes gravel/XC tire spread
  • Bead Nip tubeless bead seats provide reliable tubeless performance even at low pressures
FRONT WHEELS TO PAIR WITH:
SPANK FLARE 24 Vibrocore™


VARIANT SPECS

HUB HUB SPACING BOOST FREEHUB HOLE COUNT ADAPTER INCL. WEIGHT ERD ETRTO SPOKE LENGTH SPOKE LENGTH
650b
HEX GRAVEL
12x142
-
HG-Road
28H
QRx135
928g 564++ 584x24 R-277 L-278
HEX GRAVEL
12x142
-
XDR
28H
QRx135
920g 564++ 584x24 R-277 L-278
700c HEX GRAVEL 12x142 -
HG-Road 28H QRx135
953g
602++ 622x24
R-296

L-297


HEX GRAVEL
12x142
-
XDR
28H
QRx135
945g
602++
5622x24

R-296

L-297




COMPATIBLE REAR ADAPTERS

R135/142:

HEX Rear Hub 12x135/150 Adapter



HEX Rear Hub 10x135 Adapter


COMPATIBLE SERVICE KITS

HEX Rear HG/HGR Hub Replacement Bearing Kit

HEX Rear XD/XDR Hub Replacement Bearing Kit

HEX Rear Hub 135/142mm Alloy Axle Shaft

HEX Rear Hub HGR Alloy Anti-Bite Freehub & Spacer Ring

HEX Rear Hub XDR Alloy Freehub & Spacer Ring


CLASSIFICATION & INTENDED USE:
  ASTM 3

ALL MOUNTAIN
TRAIL
ENDURO
FREERIDE
-
-
-
-
DOWNHILL GRAVEL XC E-BIKE
-


-

HUMAN FACTOR

SPANK's recommendations for what body type and ride style this product is suited to.

BODY WEIGHT & RIDE STYLE: Heavy Rider Medium Rider Light Rider
Heavy Impact



Medium Impact


Light impact


RIM SPECIFICATIONS

HOLE COUNT:
28
INNER WIDTH (mm):
24
OUTER WIDTH (mm):
28
PROFILE HEIGHT:
16.5
TYRE FIT
35c to 62c, or 1.5" to 2.3"

BUILD SPECIFICATIONS

BUILD:
Handbuilt
HUB:
SPANK HEX GRAVEL J-TYPE
SPOKES:

J-hook triple-butted 2.2/1.8/2

NIPPLES:

Alloy external

LACING:
3 cross lacing
VALVE:
F/V Presta
TUBELESS:
Tubeless taped & valved

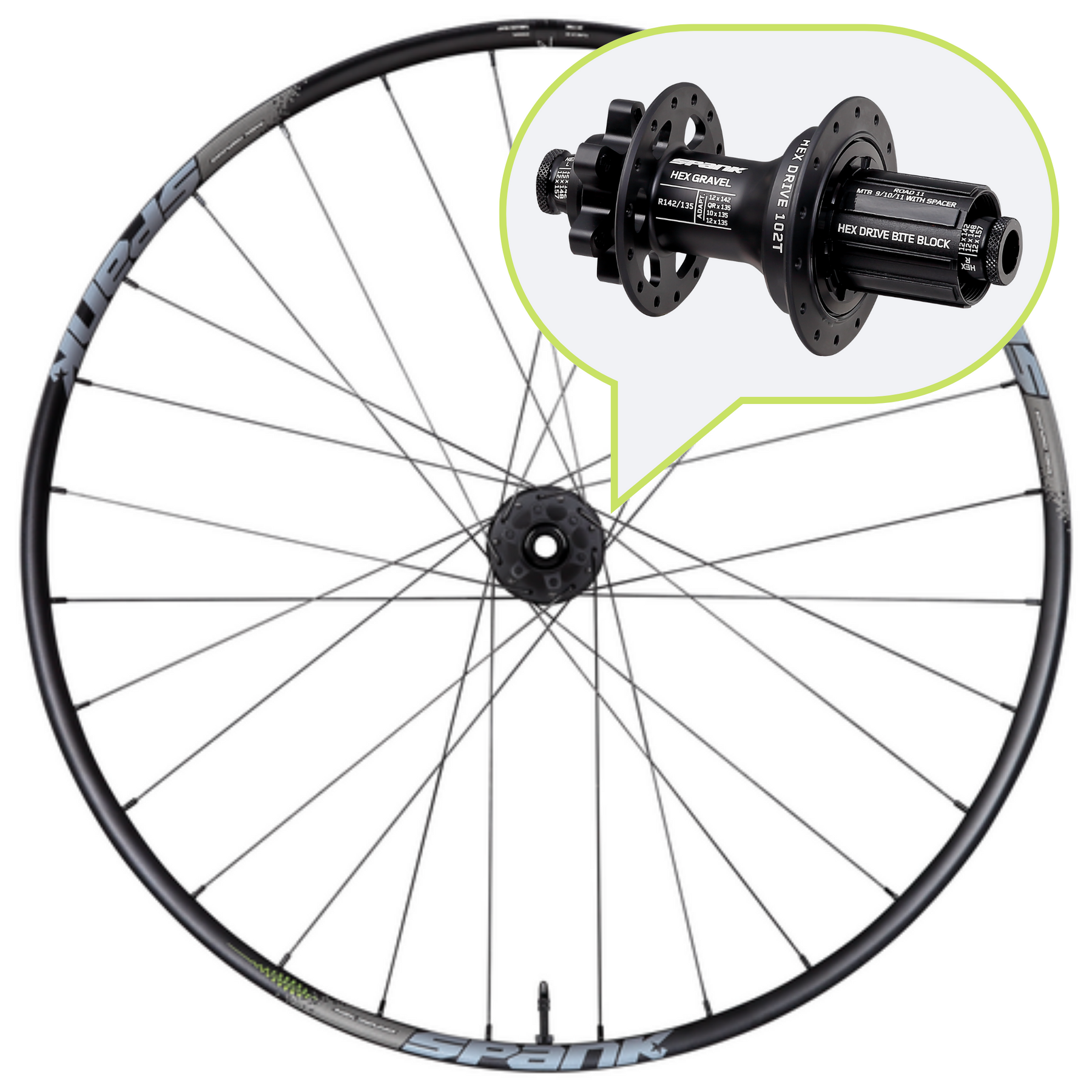

HUB SPECIFICATIONS:

ENGAGEMENT:
HEX DRIVE 102T / 3.5° / 6 Pawl
HOLE COUNT:
28H J-Hook
DISC MOUNT:
6-bolt
MATERIAL:
CNC optimized forged alloy hub body, alloy axle, alloy freehub body
