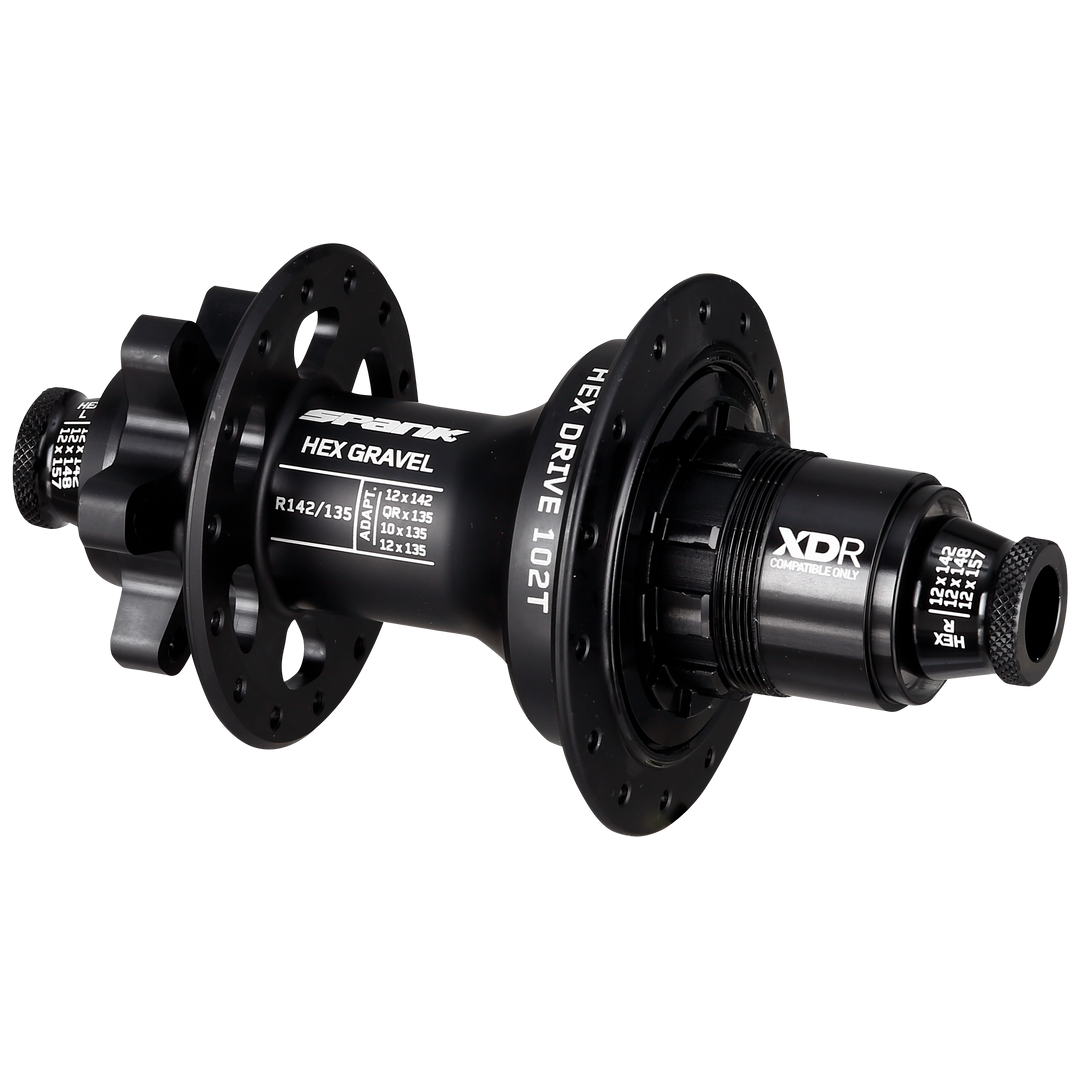

SPANK HEX GRAVEL R135/142 Hub
SPANK HEX GRAVEL R135/142 Hub
SPANK HEX GRAVEL R135/142 Hub
SPANK HEX GRAVEL R135/142 Hub

SPANK HEX GRAVEL R135/142 Hub

Save $50.11
/
Only 4 items in stock!

The driver for gravel.

The New SPANK HEX DRIVE HUB, featuring:

  • 102T, 6-Pawl 3.5 degree Engagement
  • Full Alloy body and axle
  • Bite Block Alloy freehubs
  • Advanced seal system

CLASSIFICATION & INTENDED USE

ALL MOUNTAIN TRAIL ENDURO FREERIDE DOWNHILL GRAVEL XC





✔ ✔



  • SPANK's HEX DRIVE 102T technology delivers 3.5° engagement, for almost instant pickup
  • 6 independent pawls with 3 steps per pawl, work in unison, meaning 18 engagement points per click
  • Bite-Block Alloy HG and XD Freehub bodies resist damage from cassettes without the weight penalty of steel
  • Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
  • Advanced seal system improves prevention of bearing/drive system contamination

    •

    SPECIFICATIONS

    ENGAGEMENT:

    HEX DRIVE 102T / 3.5° / 6 Pawl

    HOLE COUNT:

    28H J-Hook

    DISC MOUNT:

    6-bolt

    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body

    FINISH:

    Matte anodized, laser logos




    R135/142

    CONFIGURATION:

    12x142mm, J-Hook

    FREEHUB:

    Alloy HGR / Alloy XDR

    WEIGHT +/- (g):

    314 (HGR) / 309 (XDR)

    ADAPTORS INCLUDED:

    QRX135

    ADAPTORS AVAILABLE SEPARATELY:

    12X135, 10X135



    ADAPTERS COMPATIBLE WITH SPANK HEX GRAVEL REAR HUBS

    R135/142:

    HEX Rear Hub 12x135/150 Adapter



    HEX Rear Hub 10x135 Adapter





    SERVICE KITS COMPATIBLE WITH SPANK HEX GRAVEL REAR HUBS

    HEX Rear HG/HGR Hub Replacement Bearing Kit

    HEX Rear XD/XDR Hub Replacement Bearing Kit

    HEX Rear Hub 135/142mm Alloy Axle Shaft

    HEX Rear Hub HGR Alloy Anti-Bite Freehub & Spacer Ring

    HEX Rear Hub XDR Alloy Freehub & Spacer Ring
