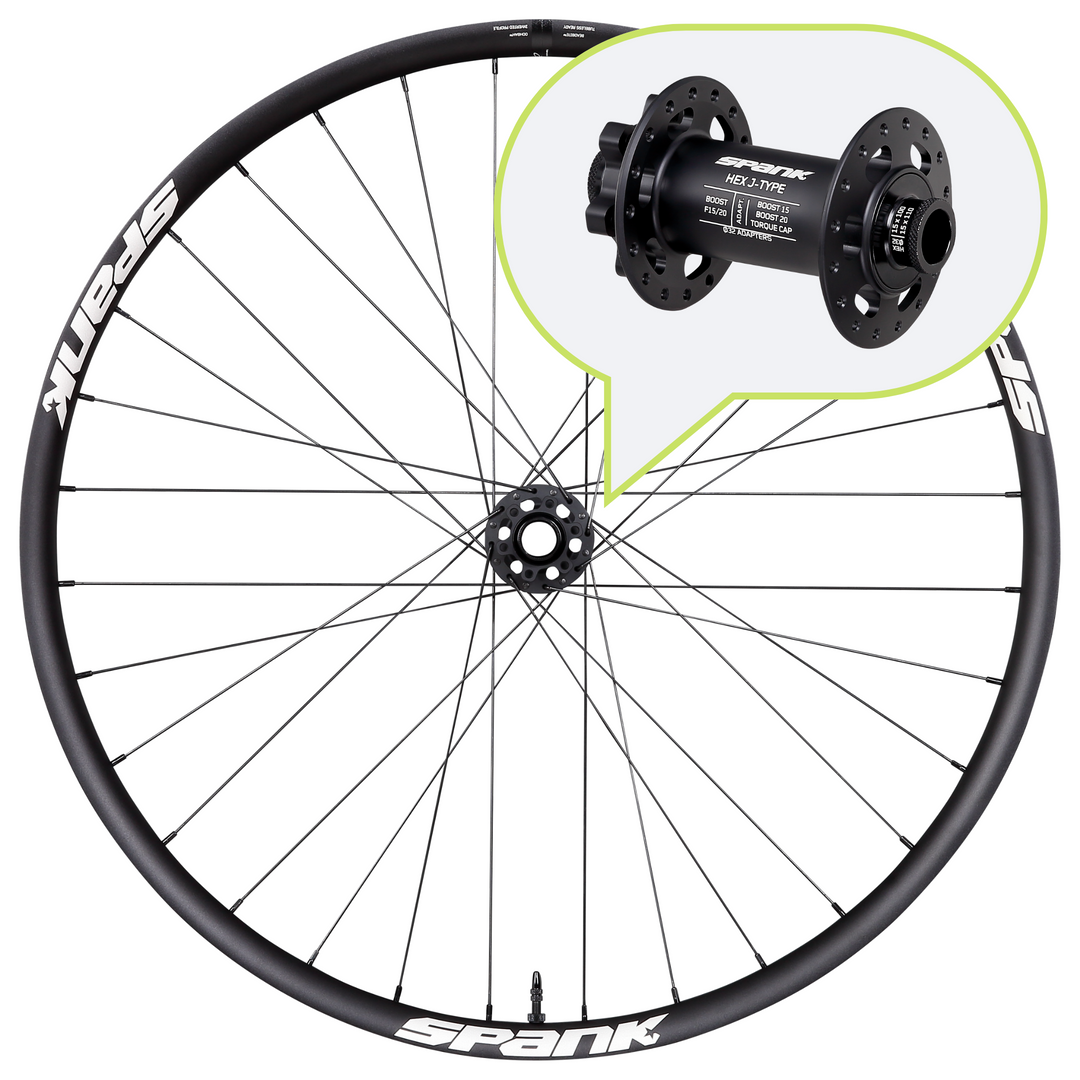

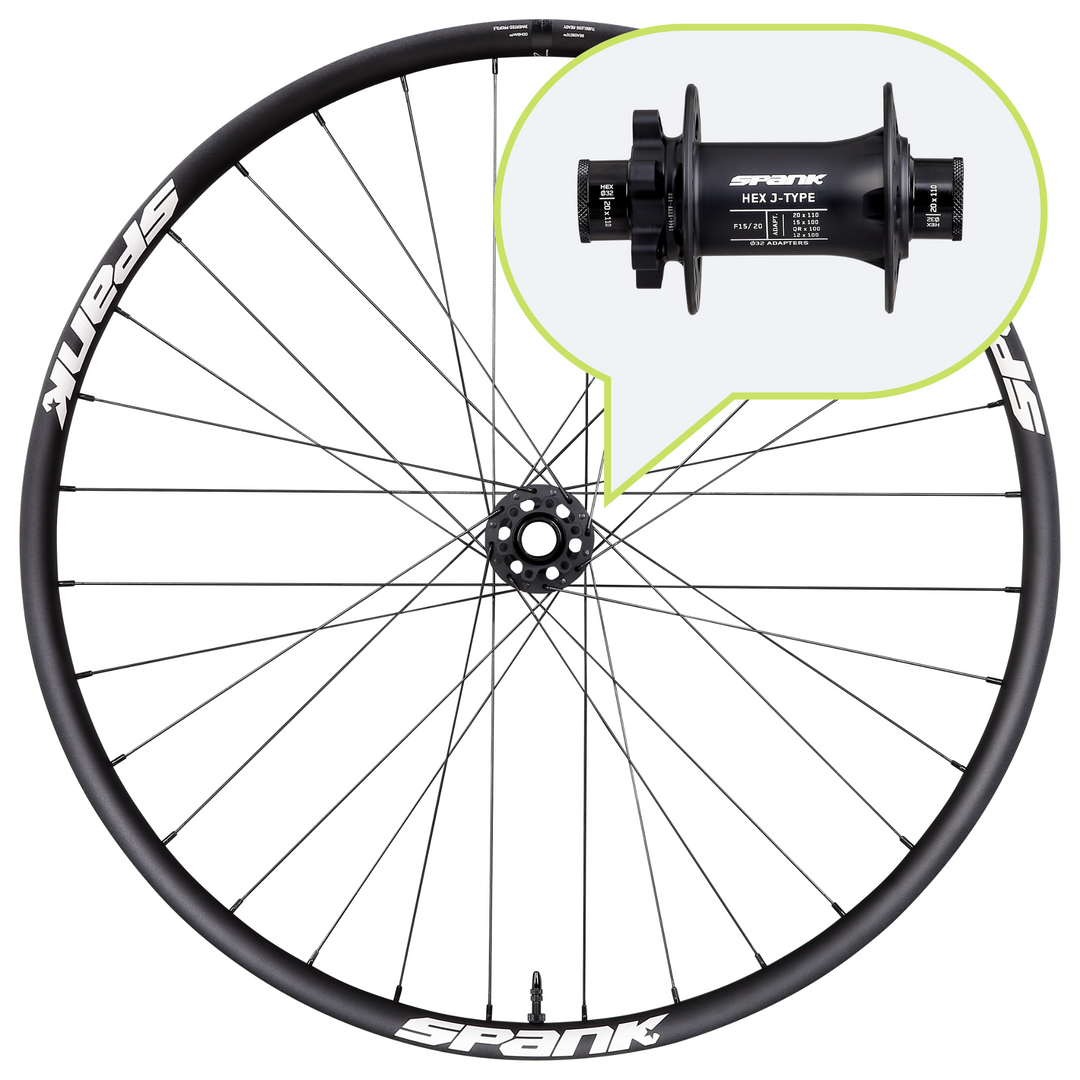

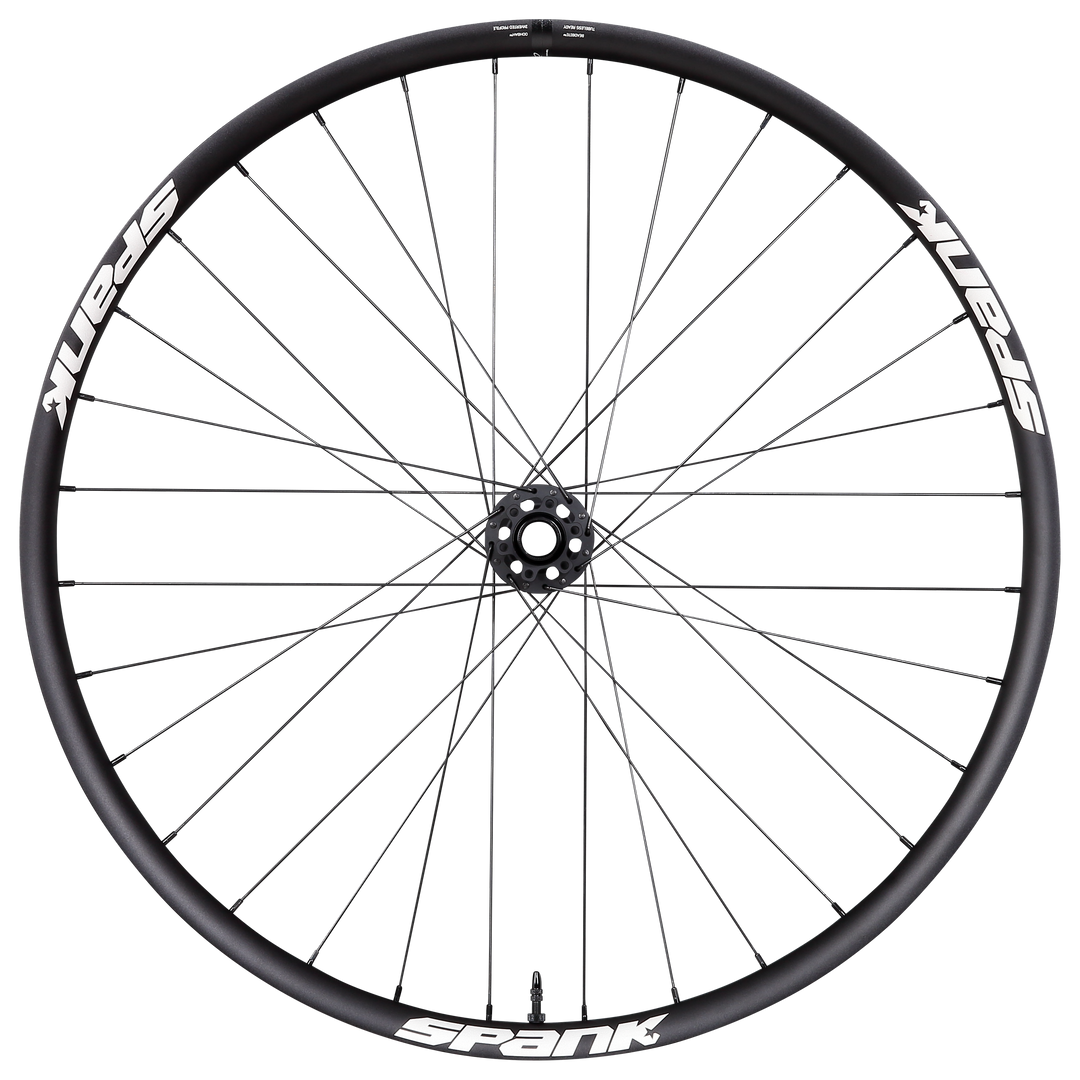

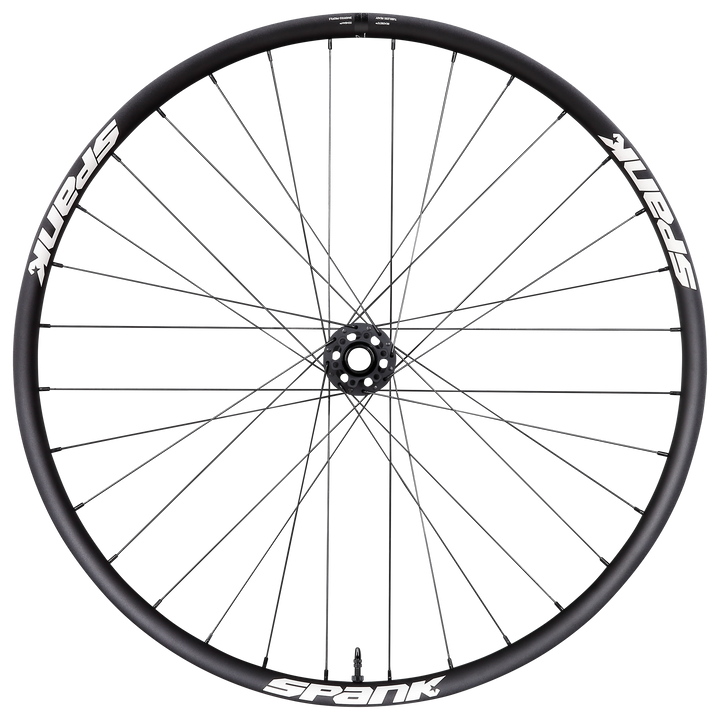

SPANK SPIKE Race 33 FRONT Wheel
SPANK SPIKE Race 33 FRONT Wheel
SPANK SPIKE Race 33 FRONT Wheel
SPANK SPIKE Race 33 FRONT Wheel
SPANK SPIKE Race 33 FRONT Wheel

SPANK SPIKE Race 33 FRONT Wheel

Regular price Save $-269.99
/

Only 1 items in stock!
  • A high-performance alloy rim designed for freeride, enduro and downhill race use
  • Tubeless-ready with anti-burp rim hooks to prevent the loss of pressure and keep tires firmly in place
  • 32 holes with an inner width of 28mm and outer width of 33mm to optimize tire spread and enhance traction
  • The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
  • Shot peen finish to increase fatigue life and make it more durable

REAR WHEELS TO PAIR WITH:

SPIKE RACE 33


VARIANT SPECS


HUB HUB SPACING BOOST HOLE COUNT ADAPTER INCL. WEIGHT ERD ETRTO SPOKE LENGTH SPOKE LENGTH
26"
HEX J TYPE
20x110
- 32H 15x100
845g 529++ 559x28 R-258 L-256
27.5"
HEX J TYPE
20x110
-
32H
15x100
887g 554++ 584x28 R-269 L-267
HEX J TYPE
BOOST 15x110
BOOST
32H
BOOST 20x110
899g
554++
584x28
R-269
L-267
29"
HEX J TYPE
20x110
-
32H
15x100
923g 591++ 622x28 R-288 L-286
HEX J TYPE
BOOST 15x110
BOOST
32H
BOOST 20x110
936g
591++
622x28
R-288
L-286



COMPATIBLE ADAPTERS FOR SPANK HEX J-TYPE FRONT HUBS

Boost F15/20

HEX Ø32 Boost Front Hub Torque Caps Adapter

F15/20

HEX Ø32 Front Hub QRx100 Adapter

HEX Ø32 Front Hub 12x100 Adapter

All Hex J-Type Front Hubs

HEX Ø32 Front Hub Boost 15x110 Conversion Kit



HEX Ø32 Front Hub Boost 20x110 Conversion Kit


COMPATIBLE SERVICE KITS FOR SPANK HEX J-TYPE FRONT HUBS

HEX Ø32 Front Hub Replacement Bearing Kit


CLASSIFICATION & INTENDED USE:
  ASTM 5

ALL MOUNTAIN
TRAIL
ENDURO
FREERIDE
-
DOWNHILL GRAVEL XC E-BIKE
- - *

 * Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as seperate purchase in HG, XD and Microspline.  (See Hex Drive Service Parts)

HUMAN FACTOR

SPANK's recommendations for what body type and ride style this product is suited to.

BODY WEIGHT & RIDE STYLE: Heavy Rider Medium Rider Light Rider
Heavy Impact

Medium Impact

Light impact


RIM SPECIFICATIONS

HOLE COUNT:
32
INNER WIDTH (mm):
28
OUTER WIDTH (mm):
33
PROFILE HEIGHT:
22
TYRE FIT
1.9" to 2.5"


BUILD SPECIFICATIONS

BUILD:
Handbuilt
HUB: SPANK HEX J-TYPE
SPOKES:
J-Hook, tripple butted 2.2/1.8/2.0
NIPPLES:
Brass external
LACING:
3 cross lacing
VALVE: F/V Presta
TUBELESS: Tubeless taped & valved
