SPANK 359 Vibrocore Rear Wheel
SPANK 359 Vibrocore Rear Wheel
SPANK 359 Vibrocore Rear Wheel
SPANK 359 Vibrocore Rear Wheel
SPANK 359 Vibrocore Rear Wheel
SPANK 359 Vibrocore Rear Wheel
SPANK 359 Vibrocore Rear Wheel

SPANK 359 Vibrocore Rear Wheel

Regular price$479.99
/

Size
Color
  • Low stock - 1 item left
  • Backordered, shipping soon

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

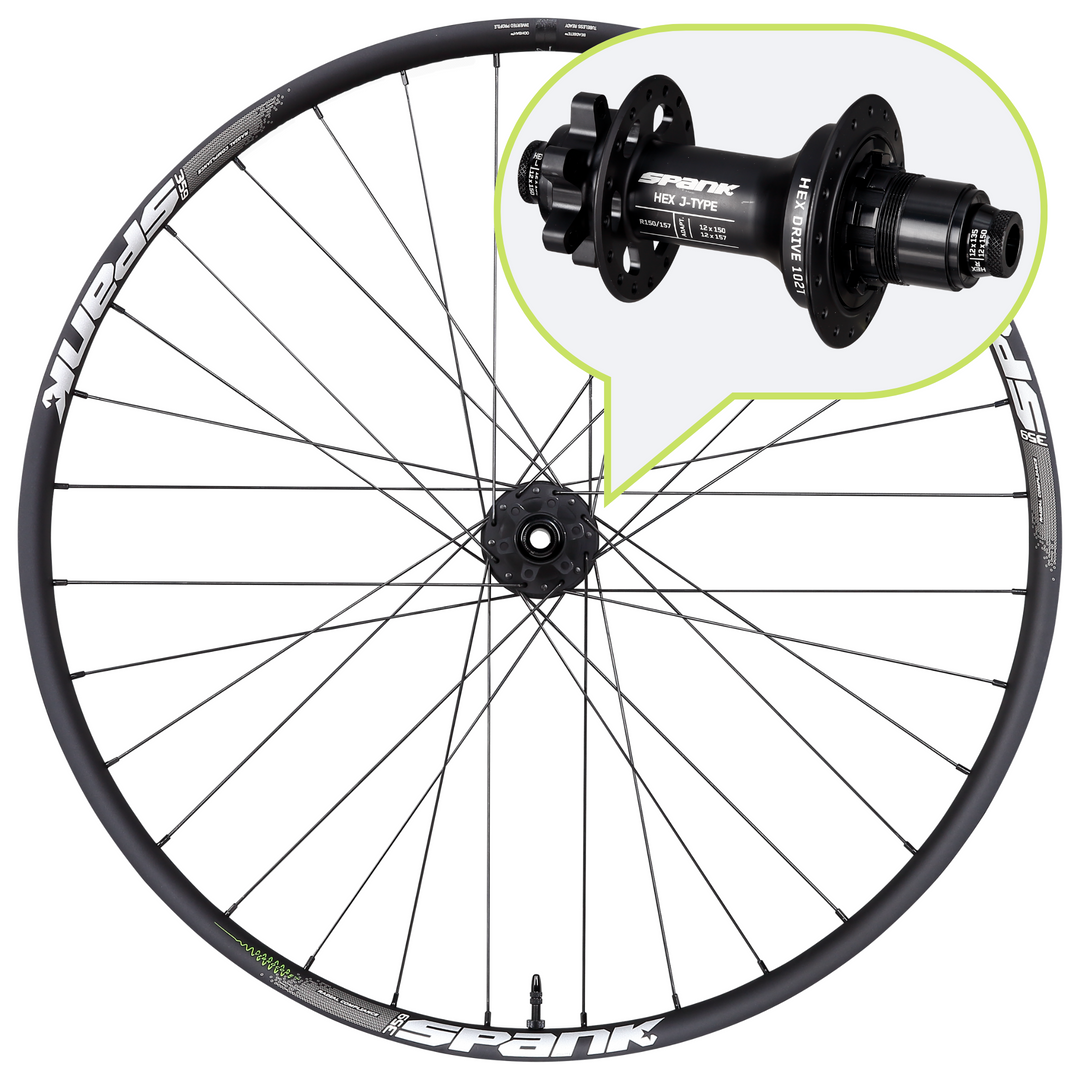

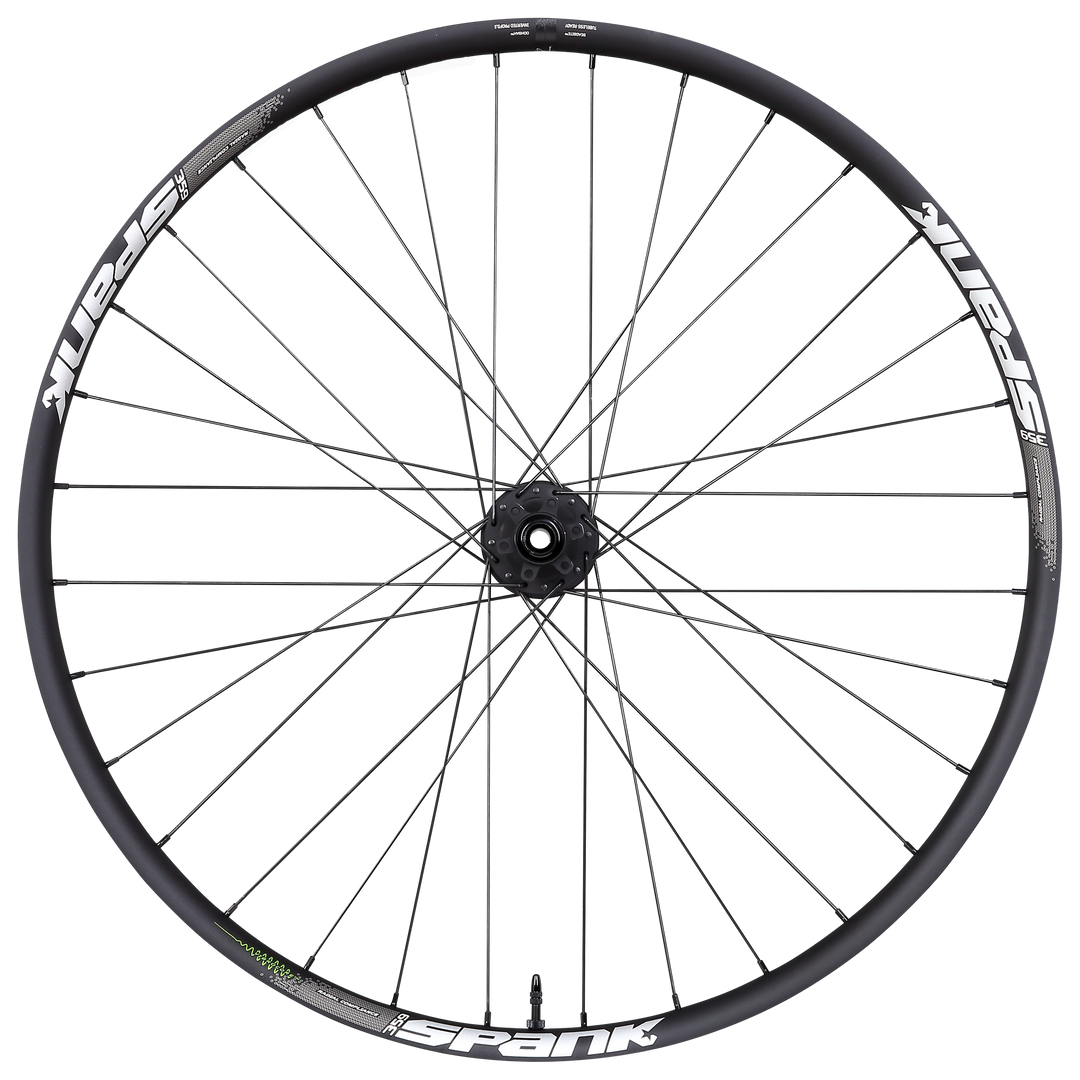

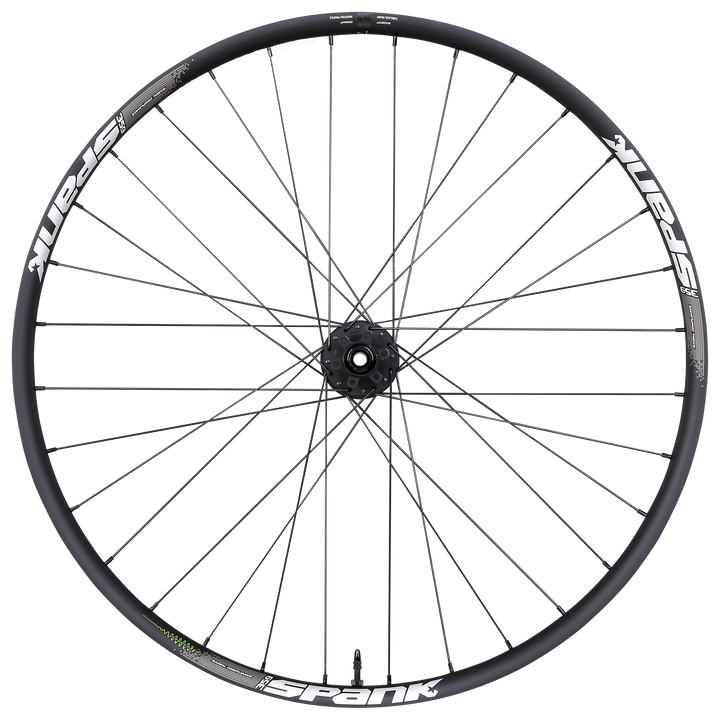

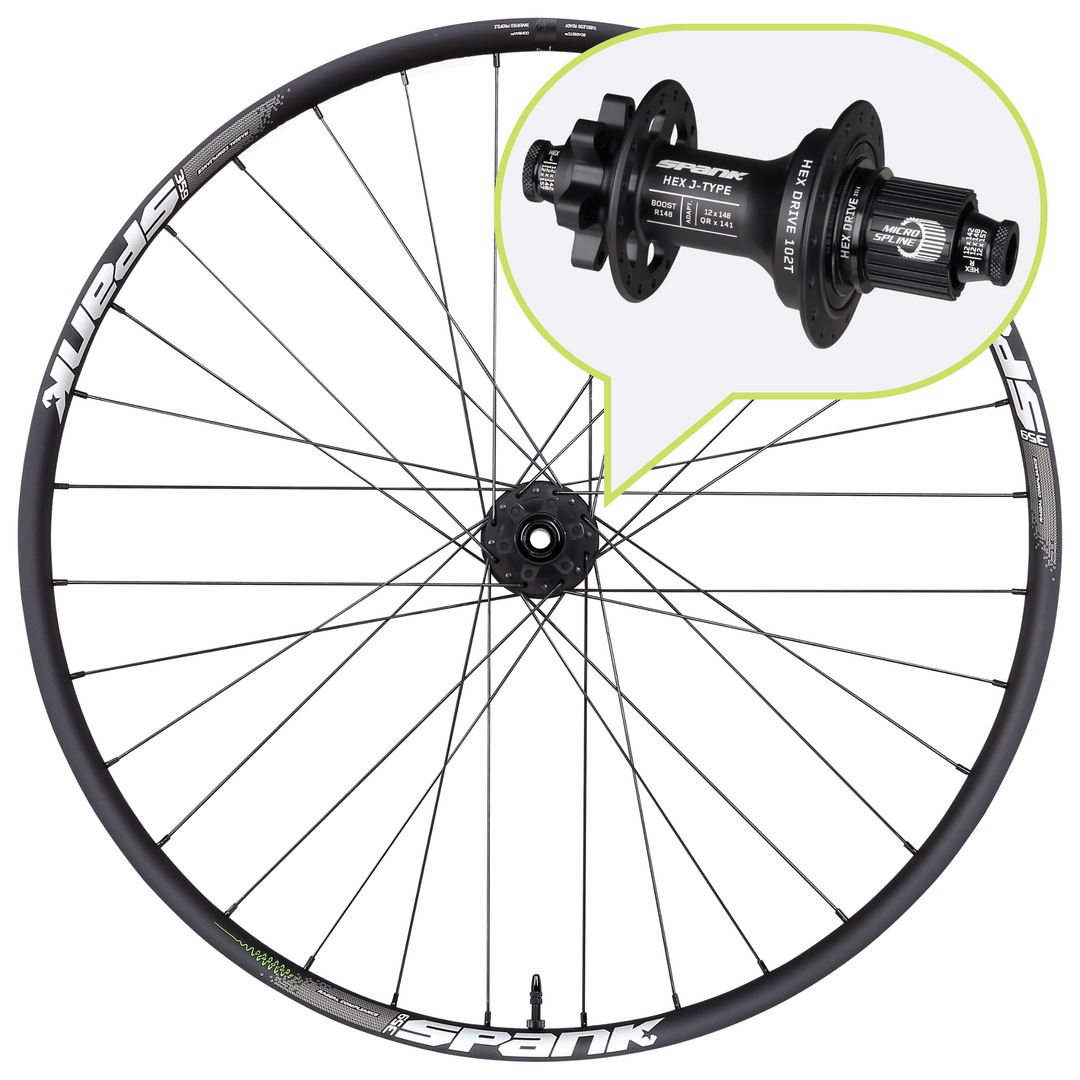

Spank 359 Vibrocore 27.5" rear wheels are laced to the brand new SPANK HEX Drive Hub, with 102T 6-pawl ratchet offering 3.5 degrees of engagement - that's literally almost instant pick-up.  The low profile, radially compliant alloy rim injected with SPANK's award-winning Vibrocore to add torsional strength and lateral stiffness, offers a smooth and highly responsive ride feel.  Hand-built to A-Class specifications, the 359 Vibrocore wheels with SPANK Hex Drive hub is the premium offer from the SPANK wheelhouse and is trusted by pros on the UCI DH World Cup circuit, as well as big mountain free-riders.  This wheel is spec'd and built for the heavy hitters.

  • 19mm profile height and wide width balances the benefits of radial compliance with high lateral stiffness and predictable handling
  • Radial Compliance improves traction over bumps and chatter while reducing negative feedback to the rider. Performance and comfort are improved.

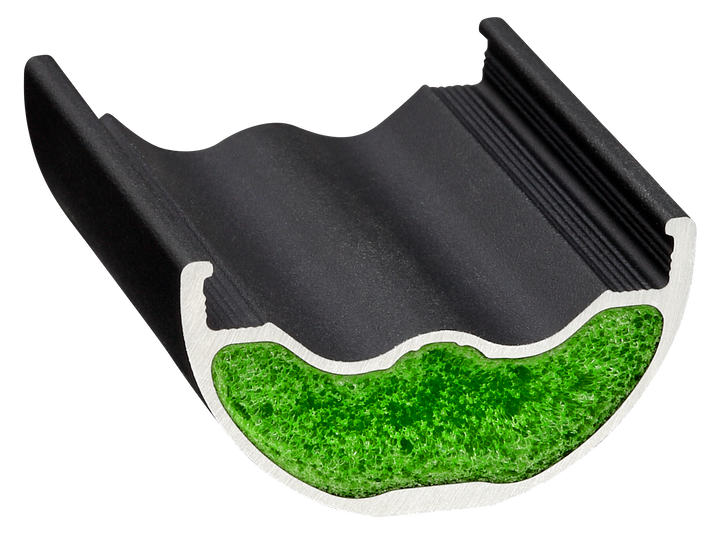

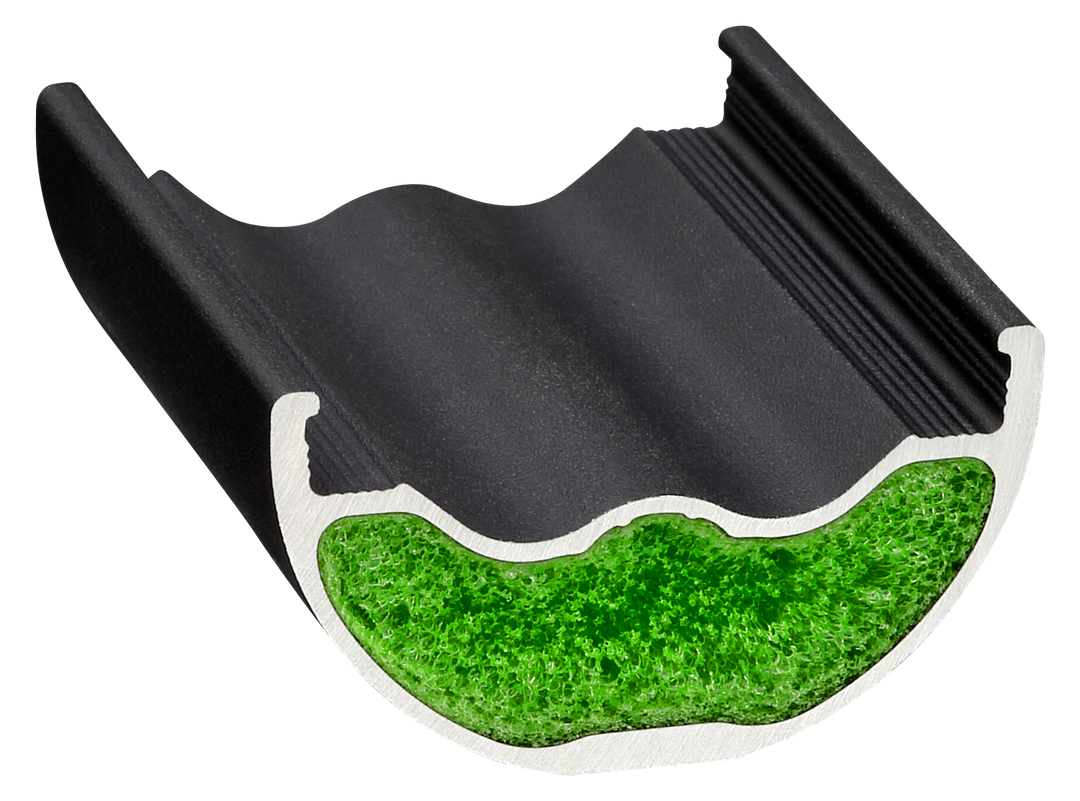

  • Vibrocore™ inner well, reduces the transmission of harmful vibration frequencies, meaning less vibration for the suspension and rider, also increasing the fatigue life of the rim
  • 30.5mm inner width is extremely versatile, fitting tires from 2.0” to 2.6”, and even allowing + size tire use without negative squaring off of tire profiles
  • Bead Bite tubeless hooks enhance tubeless performance and tire security, even at lower pressures

FRONT WHEELS TO PAIR WITH:

SPANK 350 SPANK 350 VIBROCORE SPANK 359 VIBROCORE

VARIANT SPECS

(Available factory standard in XD and Shimano HG.  Micro spine freehubs available).


HUB HUB SPACING BOOST FREEHUB HOLE COUNT ADAPTER INCL. WEIGHT ERD ETRTO SPOKE LENGTH SPOKE LENGTH
27.5" HEX J TYPE 12x148 BOOST HG 32H -
1149g 560++ 584x30.5 R-270

L-273


HEX J TYPE
12x148
BOOST
XD
32H
-

1141g

560++
584x30.5

R-270

L-273


HEX J TYPE 12x150
-
HG
32H
12x157

1150g

560++
584x30.5

R-270

L-273


HEX J TYPE
12x150
- XD
32H
12x157

1142g

560++
584x30.5

R-270

L-273













29"
HEX J TYPE 12x148
BOOST HG
32H
-

1197g

598++

622x30.5

R-289

L-292


HEX J TYPE 12x148
BOOST XD
32H
-

1189g

598++

622x30.5

R-289

L-292

HEX J TYPE 12x150 - HG
32H
12x157

1198g

598++

622x30.5

R-289

L-292

HEX J TYPE 12x150 - XD
32H
12x157

1190g

598++

622x30.5

R-289

L-292


COMPATIBLE REAR ADAPTERS

Boost R148:

HEX Rear Hub QRx135/141 Adapter

R150/157:

N/A

R135/142:

HEX Rear Hub QRx135/141 Adapter


HEX Rear Hub 10x135 Adapter


COMPATIBLE SERVICE KITS

HEX Rear HG/HGR Hub Replacement Bearing Kit

HEX Rear XD/XDR Hub Replacement Bearing Kit

HEX Boost Rear Hub Alloy Axle Shaft

HEX Rear Hub 135/142mm Alloy Axle Shaft

HEX Rear Hub 150/157mm Alloy Axle Shaft

HEX Rear Hub HG Alloy Anti-Bite Freehub

HEX Rear Hub XD Alloy Freehub


CLASSIFICATION & INTENDED USE:
  ASTM 5
ALL MOUNTAIN
TRAIL
ENDURO
FREERIDE
DOWNHILL GRAVEL XC E-BIKE
- - *

 * Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as a separate purchase in HG, XD, and Microspline.  (See Hex Drive Service Parts)

HUMAN FACTOR

SPANK's recommendations for what body type and ride style this product is suited to.

BODY WEIGHT & RIDE STYLE: Heavy Rider Medium Rider Light Rider
Heavy Impact

Medium Impact

Light impact


RIM SPECIFICATIONS
HOLE COUNT:
32
INNER WIDTH (mm):
30.5
OUTER WIDTH (mm):
35
PROFILE HEIGHT:
19
TYRE FIT
2.0" to 2.6"

BUILD SPECIFICATIONS
BUILD:
A-Class Handbuilt
HUB: SPANK HEX J-TYPE
SPOKES:
J-Hook, triple-butted 2.2/1.8/2.0
NIPPLES:
Brass external
LACING:
3 cross lacing
VALVE: F/V Presta
TUBELESS: Tubeless taped & valved

HUB SPECIFICATIONS:

ENGAGEMENT:
HEX DRIVE 102T / 3.5° / 6 Pawl
HOLE COUNT:
32H J-Hook
DISC MOUNT:
6-bolt
MATERIAL:
CNC optimized forged alloy hub body, alloy axle, alloy freehub body

FREEHUB COMPATIBILITY – What freehub do I need?
