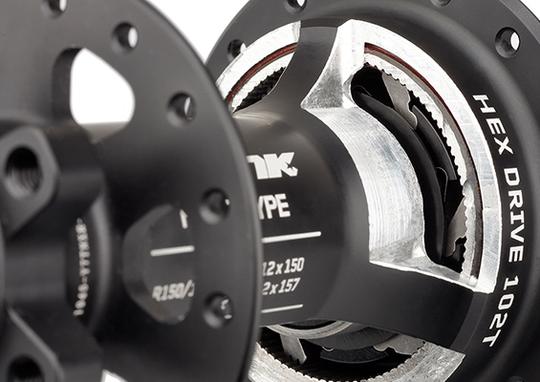

The new HEX Drive rear hubs employ a huge ratchet ring with 102 teeth. Six independent pawls, each with 3 steps, work in unison to create 18 points of contact with the ratchet ring per click. The result is an almost instant pick-up of just 3.5º, with unparalleled security against slippage under torque.  The benefit in riding terms:  no unwanted lag in your crank between pedal strokes, more efficient pedaling on technical sections and climbs, quicker, almost constant power to the pedals, and the 18 points of contact result in higher strength and better reliability.

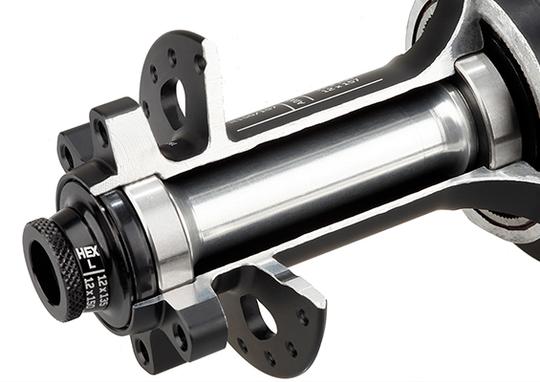

For the riders who subject their bikes to abusive conditions during the wet winters, and likewise for those with intense or prolonged exposure to fine dust conditions, we added an advanced seal system to reduce contamination. Oversized bearings further increase durability while maintaining the lighter weight of alloy.  The benefit:  low maintenance and easy service.

In addition to the seal system, the pawl cap design has the added advantages of; keeping your pawls in place during maintenance (no more crawling on the workshop floor with a magnet looking for lost pawls);seals the pawls to prevent contamination during service and maintenance, and finally; also has the benefit of damping the volume of your high engagement hub- the sound we all love, but a little quieter is a nice bonus!

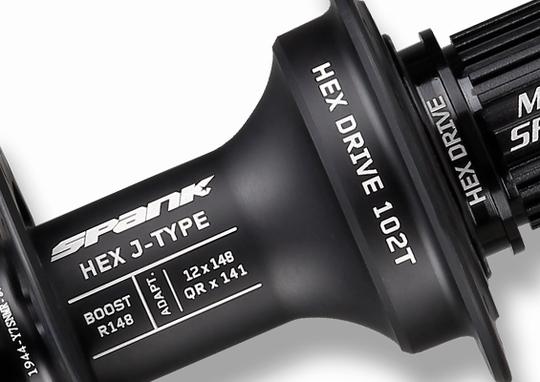

A unique flange design on the hub reduces dish requirements on the wheel build, meaning that the spoke tension on the drive side and non-drive side of the wheel is more evenly matched than many other hub designs on the market today.  The benefit for the rider comes in a more consistently tensioned, therefore stronger, wheel.

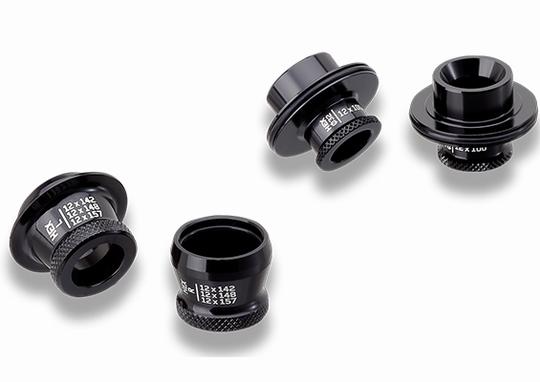

Every element of the hub was scrutinized, including adaptability. All hub adapters feature a universal fit, meaning that all HEX rear hub adapters will work with all three freehub types(XD, HG & Microspline). Furthermore, all HEX front hub adapters are symmetrical and therefore interchangeable from left to right side. The advantage to you - no more scrambling for extra adapters and added costs if you change from HG to Mircospline or XD for example.  The adapters that came with your original freehub will universally fit any other SPANK HEX DRIVE freehub.

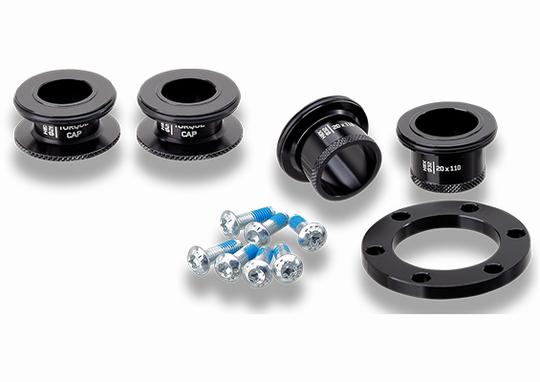

A standard set of adapter options is included in the box as extras with all SPANK HEX DRIVE Hubs, meaning that you can adapt your hub to almost any rear dropout or suspension fork set-up that is common on the market.  For set-ups a little less common, spare adapters can be purchased separately.

Since cleaning bikes is a chore none of us enjoy, ease of maintenance was a priority.  Removing end caps and the freehub doesn’t require tools to remove, and can be done by hand, making the HEX DRIVE Hub incredibly easy to service and maintain.

A full range of service parts such as bearing and pawl kits are available.  Spare adapters and freehubs (Microspline, XD &HG) are available now, as well as torque caps for front suspension running torque cap standard.  And for the ebike community, from June 2020,'Electric Plus' standard steel freehubs will be available for HEX DRIVEHubs , also across all platforms (XD, HG & Microspline).

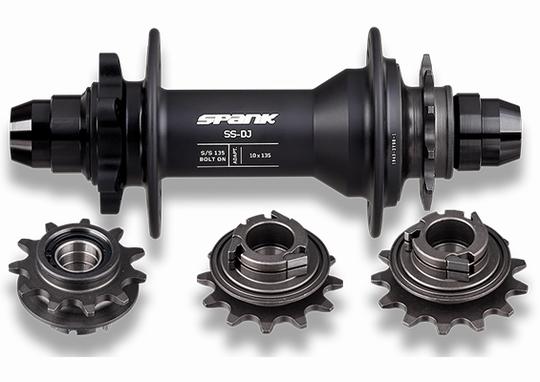

26-inchers, dirt jumpers, pumptrack regulars and even BMX'ers can rejoice!  SPANK couldn't come to market with a new hub without taking care of our core single speed fans! No more conversion kits and ghetto fixes.  Alongside the launch of the HEX DRIVE Hubs, SPANK also releases it's new SS-DJ Hub.  Available now with an 11T cog, 12T & 13T cogs are also available separately.  Naturally, this one is bombproof!
